(Cryogenic/Dewar Tanks)

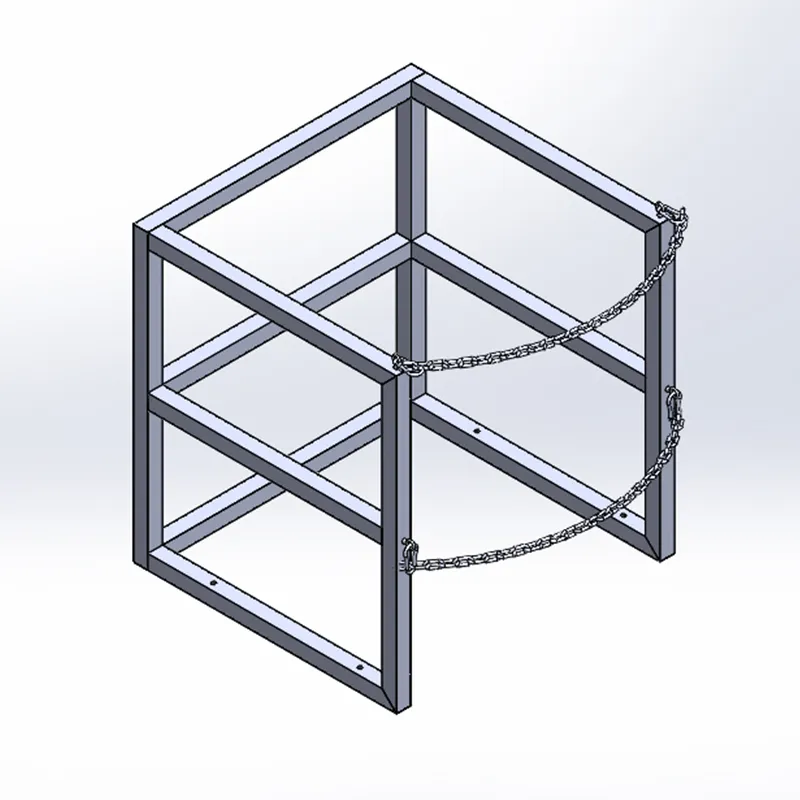

Liquid Gas cylinder rack is fabricated out of tube steel 2” x 2”. It can accommodate cylinders 18” to 33” dia. and can hold 1 cylinder. The cylinder is encased with seam welded tube steel and secured at front using 2 levels of chains and snaps. Holes are provided at bottom leg for permanently anchoring to floor (Please order anchor bolts separately). Helps comply with , , , and when professionally installed and secured.
Color:
Gray color readily available in stock, other custom colors offered, please call to check availability.
Lead time:
Product is made-to-order and ships 10 - 20 business days from order date.
- Cylinder capacity: 1
- Cylinder diameters supported: 18" - 33"
- 2" square steel tube continuously seam welded
- Powder coated finish
- Two levels of welded steel chains with snaps
- 4 Pre-drilled 0.531" diameter floor mounting holes
- Meets high seismic hazard zone requirements when installed properly
- OSHA, , , , and compliant when used properly
- Dimensions: 38" wide x 36" deep x 40" high
- Product Weight: 140 lbs.
- Made in the USA
Pick a location free from vehicle traffic, excessive heat and electrical circuits. It should be a dry and well-ventilated area.
Secure rack to the ground/floor using the appropriate hardware for the material. Typical size bolt is 1/2" by 5 1/2" size. Anchor bolts are not included. Each rack has pre-drilled 0.531" holes in each arm for mounting to ground.
It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the barricade racks at that location and to confirm all local regulations are being followed
