PUSH THE PACE ON CLIMBS, LET LOOSE ON DESCENTS. THIS ALUMINUM HARDTAIL WITH A PLUSH SUSPENSION FORK DELIVERS BALANCED, CONFIDENT HANDLING ON THE TRAIL.
KEY PERFORMANCE FACTORS
Proven alloy performance
ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Balance and stability
Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).
XC control
Suspension fork offers either 80mm or 100mm of smooth travel for added control on XC terrain.
| Sizes | 27.5: XS,S, 29: S,M,L,XL,XXL |

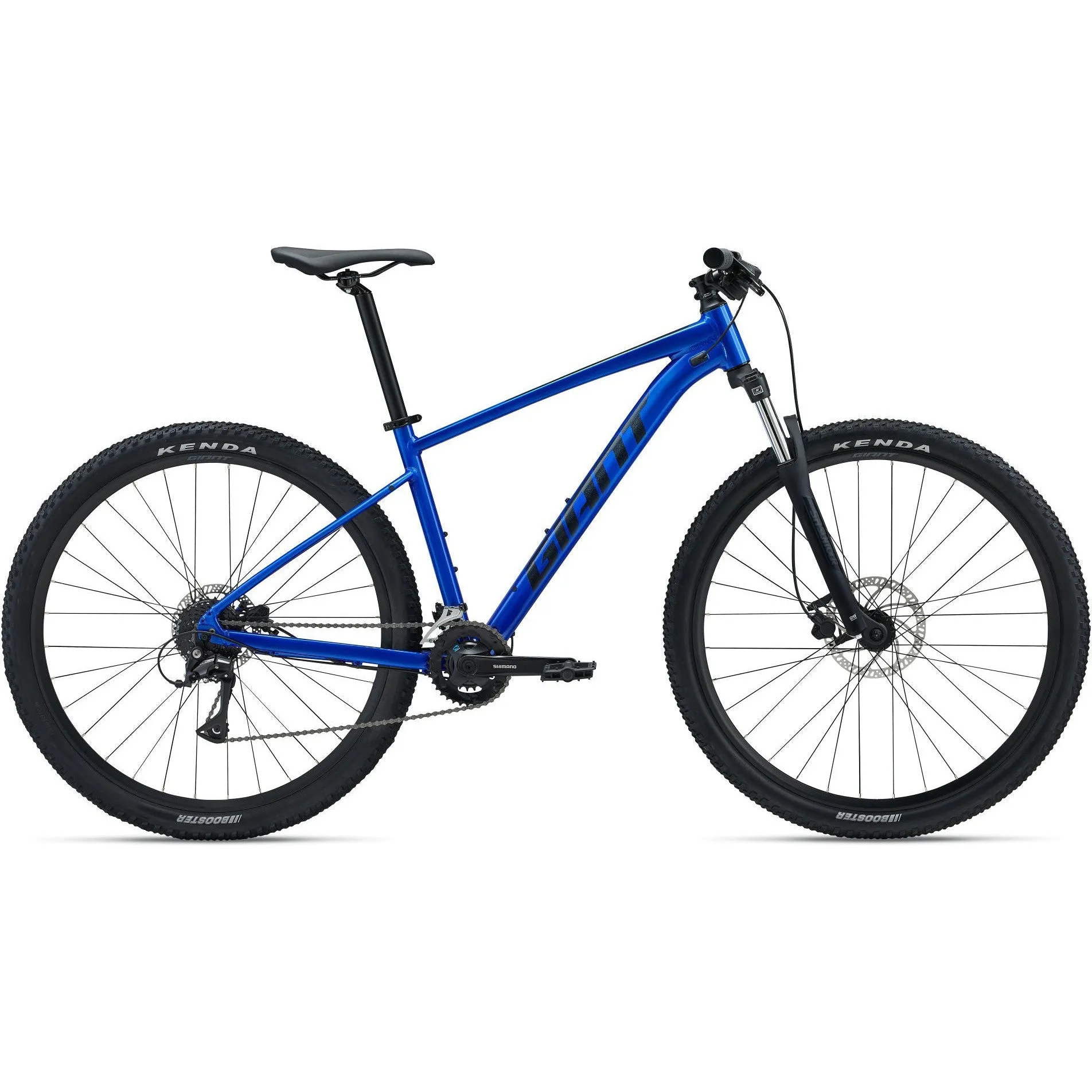

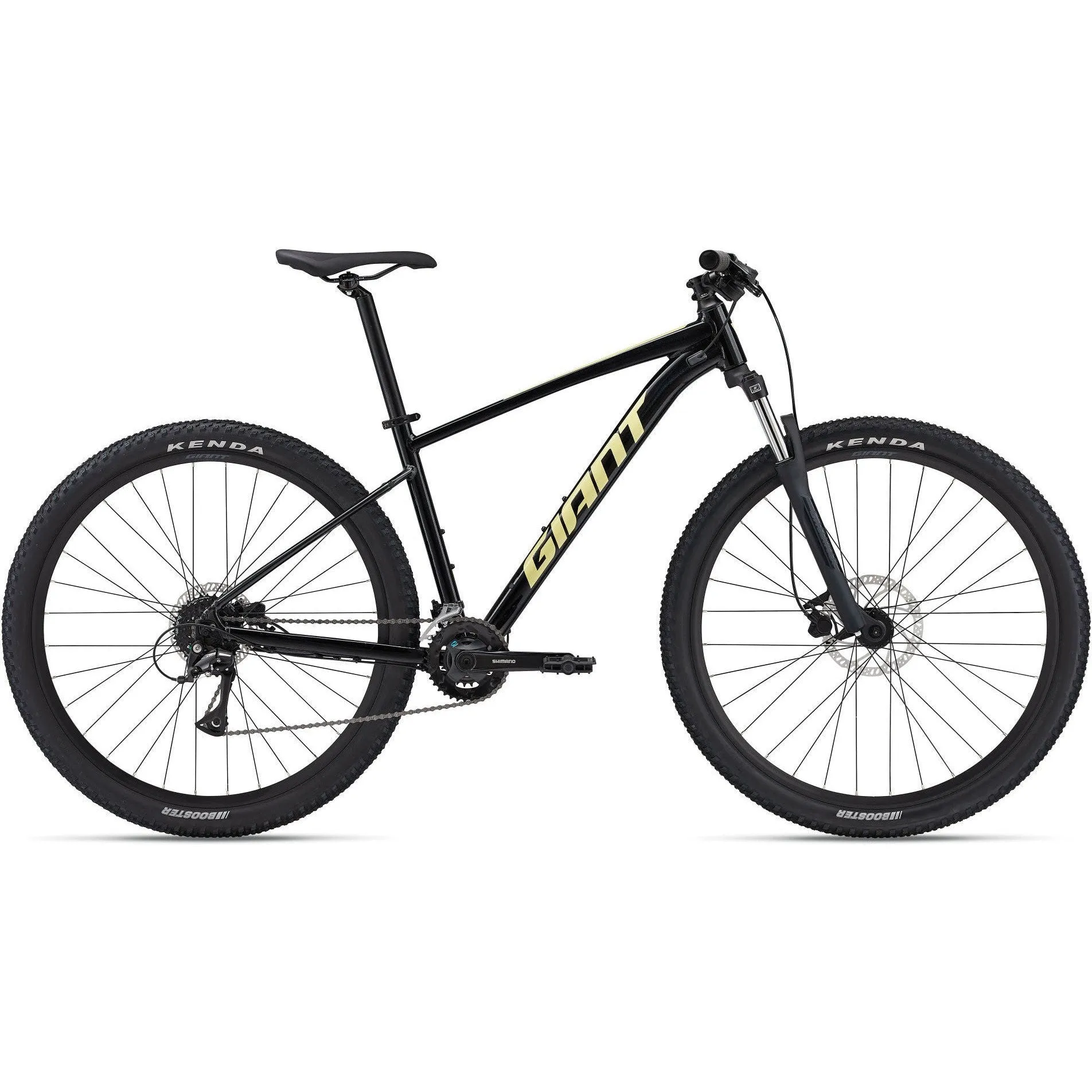

| Colors | Metallic Black, Cobalt |
| Frame | ALUXX-Grade aluminium, disc |
| Fork | SR Suntour XCE, QR, alloy steerer XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M: 100mm travel (29), L: 100mm travel (29) XL: 100mm travel (29) |
| Shock | N/A |
| Handlebar | Giant Connect Trail, 31.8mm |
| Stem | Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) |
| Seatpost | Giant Sport, 30.9mm |
| Saddle | Giant |
| Pedals | MTB caged |
| Shifters | microSHIFT TS39, 2x8 |
| Front Derailleur | microSHIFT FD-M282 |
| Rear Derailleur | Shimano Altus M310 |
| Brakes | Tektro HDM275, hydraulic, Tektro rotors [F]180mm, [R]160mm |
| Brake Levers | Tektro HDM275 |
| Cassette | Shimano Deore HG200, 12x32 |
| Chain | KMC 8.3 |
| Crankset | Shimano FC-M315, 22/36 XS: 170mm (27.5) S: 170mm (27.5) / 170mm (29) M: 175mm (29), L: 175mm (29) XL: 175mm (29) |
| Bottom Bracket | Cartridge |
| Rims | Giant GX03V 29 or 27.5, alloy, double wall |
| Hubs | Alloy, sealed |
| Spokes | Stainless, 14g |
| Tires | Kenda Booster 27.5 or 29x2.2", wire bead |
| Extras | 2.4" max tyre size, 32t max chainring size |
