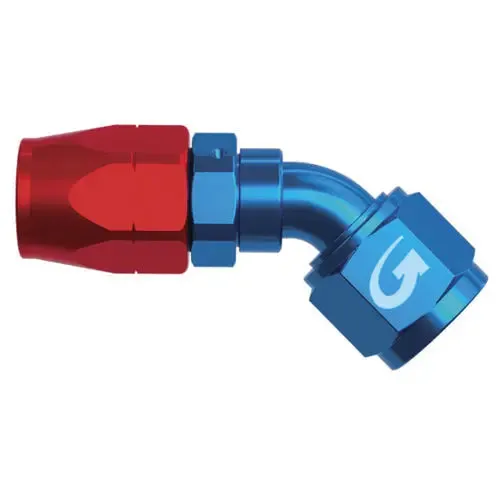

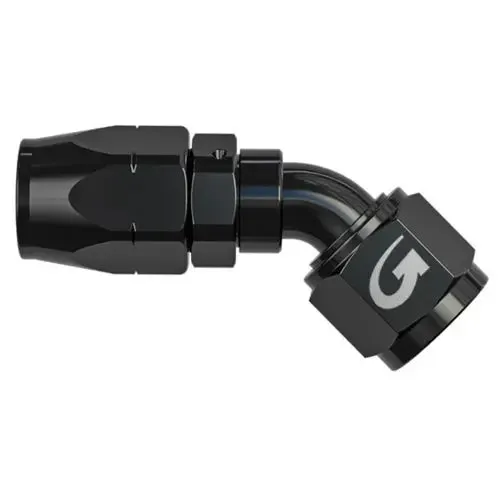

Goodridge 236 fittings are reusable fittings designed for use with the 200 series hose ranges.
The triple seal/double O-ring nitrile, cutter design ensures a secure leak free connection, easily assembled using basic hand tools.
Our 1136 fittings use a single nipple design and are available in straight, 45° & 90° options for AN-04 only.
All 1136 and 236 fitting alignments can be adjusted in situ.
| Fitting Type | Reusable |
| Fluid Specification | Oil, Coolant & Water |
| Compatible hose | 200 |
| Part No. | To suit hose | JIC/UNF |
| 1136-4504/BK | 200-04 | 7/16 x 20 |
| 236-4506/BK | 200-06 | 9/16 x 18 |
| 236-4508/BK | 200-08 | 3/4 x 16 |
| 236-4510/BK | 200-10 | 7/8 x 14 |
| 236-4512/BK | 200-12 | 1 1/16 x 12 |
| 236-4516/BK | 200-16 | 1 5/16 x 12 |
